Fluorescence spectroscopy for comprehensive analysis of mammalian cell growth

Monitoring culture media settings is critically important across various industries to enhance cell proliferation for applications such as regenerative medicines and protein synthesis. Numerous chemical components within the medium exhibit fluorescence properties, making Excitation Emission Matrix (EEM) measurement an effective technique for measuring multiple components concurrently. In this context, EEM measurement was utilized to track cell culture medium conditions throughout cell proliferation.

Image Credit: HORIBA

Background

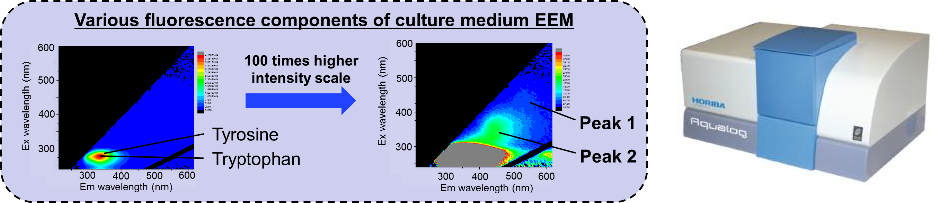

Figure 1. Samples often exhibit Inner Filter Effects (IFEs) which cause excitation and emission light absorption and increase fluorescence spectral distortion as a function of concentration. The Aqualog (HORIBA, Ltd.) measures excitation, emission, and absorption spectra simultaneously using a patented design to corrects data for IFEs.¹ Image Credit: HORIBA

Experimental setup

Culture medium: Eagle’s minimal essential medium (E-MEM), Fetal Bovine Serum, penicillin, streptomycin and non-essential amino acids

Mammalian cell: Chinese hamster ovary (CHO-K1)

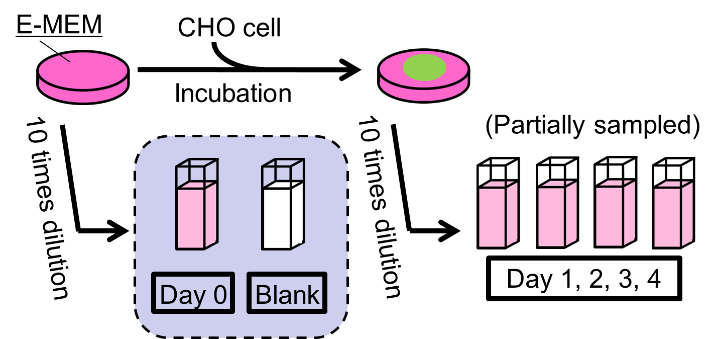

Two sample dishes were incubated over a four-day period, with daily partial sampling of remaining E-MEM (excluding the cell).

Image Credit: HORIBA

Measurement conditions

Image Credit: HORIBA

EEM acquisition was performed under the following conditions:

• Excitation range: 240 – 600 nm, 5 nm slit (bandpass)
• Emission range: 211 – 617 nm

The following calculations were applied to the measured EEM to obtain corrected EEM.

• Wavelength dependence correction of monochromator and detectors
• Blank subtract and Rayleigh masking
• IFE correction by absorbance spectrum

Results

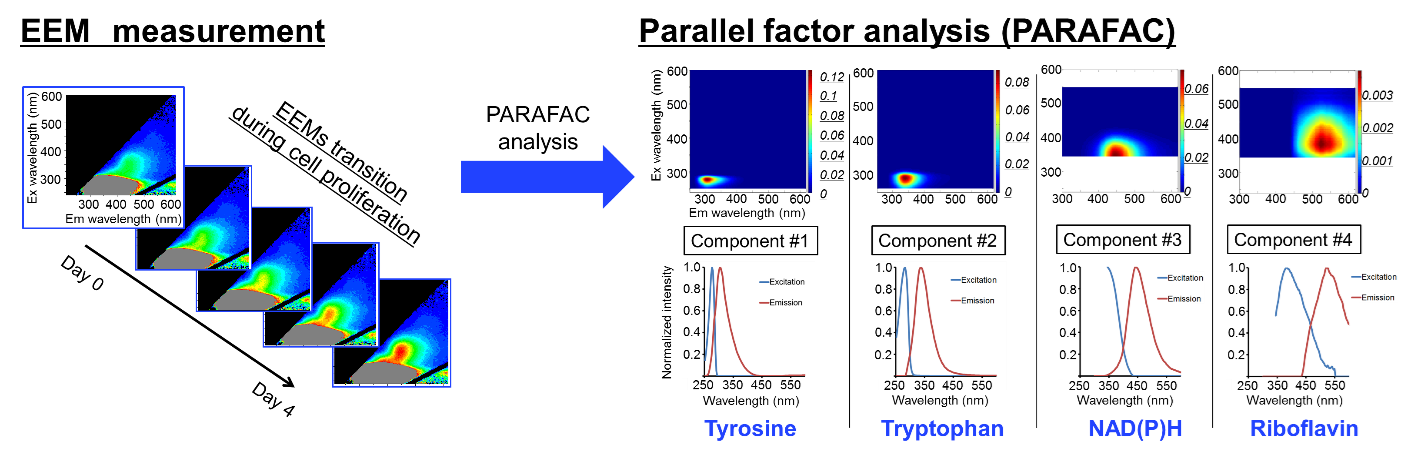

Figure 2. Fluorescence intensity (Ex: around 350 nm, and Em: around 450 nm) were increased continuously. All EEM data in the cell proliferation were analyzed using PARAFAC as a chemometric analysis. As a result, four spectral components were successfully extracted. Each component spectra looked similar to the known fluorescence materials indicated above.² Image Credit: HORIBA

Figure 3. PARAFAC score of component #3, like NAD(P)H-like, increased continuously during the cell proliferation. The result shows that the component #3 is a key fluorescence indicator of the culture medium condition and cell proliferation. NAD(P)H is known to correspond to changes in cell environment.³ Image Credit: HORIBA

Conclusion

EEM measurement effectively characterized the culture medium conditions in cell proliferation. PARAFAC evaluation of the EEM data detected four fluorescence components concurrently from the overlapping contour graph.

Additionally, each fluorescence component was detected quantitatively by PARAFAC scores. One of the detected components corresponded to NADPH, which plays a crucial role in metabolism. Consequently, EEM measurement provides valuable insight into monitoring culture medium conditions in cell proliferation.

Acknowledgments

Produced from materials originally authored by Yuichi Kitagawa, Takumi Moriyama, Daisuke Irikura, and Yasushi Nakata at HORIBA TECHNO SERVICE Co., Ltd..

References and further reading:

1. Gilmore, A. and Cohen, S. (2013). Analysis of the Chromophoric Dissolved Organic Matter in Water by EEMs with HOBIBA-Jobin Yvon Fluorescence Instrument called ‘Aqualog’. (online) Available at: https://static.horiba.com/fileadmin/Horiba/Company/About_HORIBA/Readout/R41E/R41E_06_019_01.pdf (Accessed 7 Aug. 2025).
2. Faassen, S. and Hitzmann, B. (2015). Fluorescence Spectroscopy and Chemometric Modeling for Bioprocess Monitoring. Sensors, 15(5), pp.10271–10291. https://doi.org/10.3390/s150510271.
3. Zabriskie, D.W. and Humphrey, A.E. (1978). Estimation of Fermentation Biomass Concentration by Measuring Culture Fluorescence. Applied and Environmental Microbiology, 35(2), pp.337–343. https://doi.org/10.1128/aem.35.2.337-343.1978.
