A compact, linearly driven, ceramic piston pump, capable of dispensing less than 1 microliter with exceptional precision and accuracy. A vastly optimized driving mechanism means TRYTON™ has only THREE moving components. Plus, Fluid Metering’s distinct CeramPump® technology ensures a longer lifetime and superior chemical inertness.

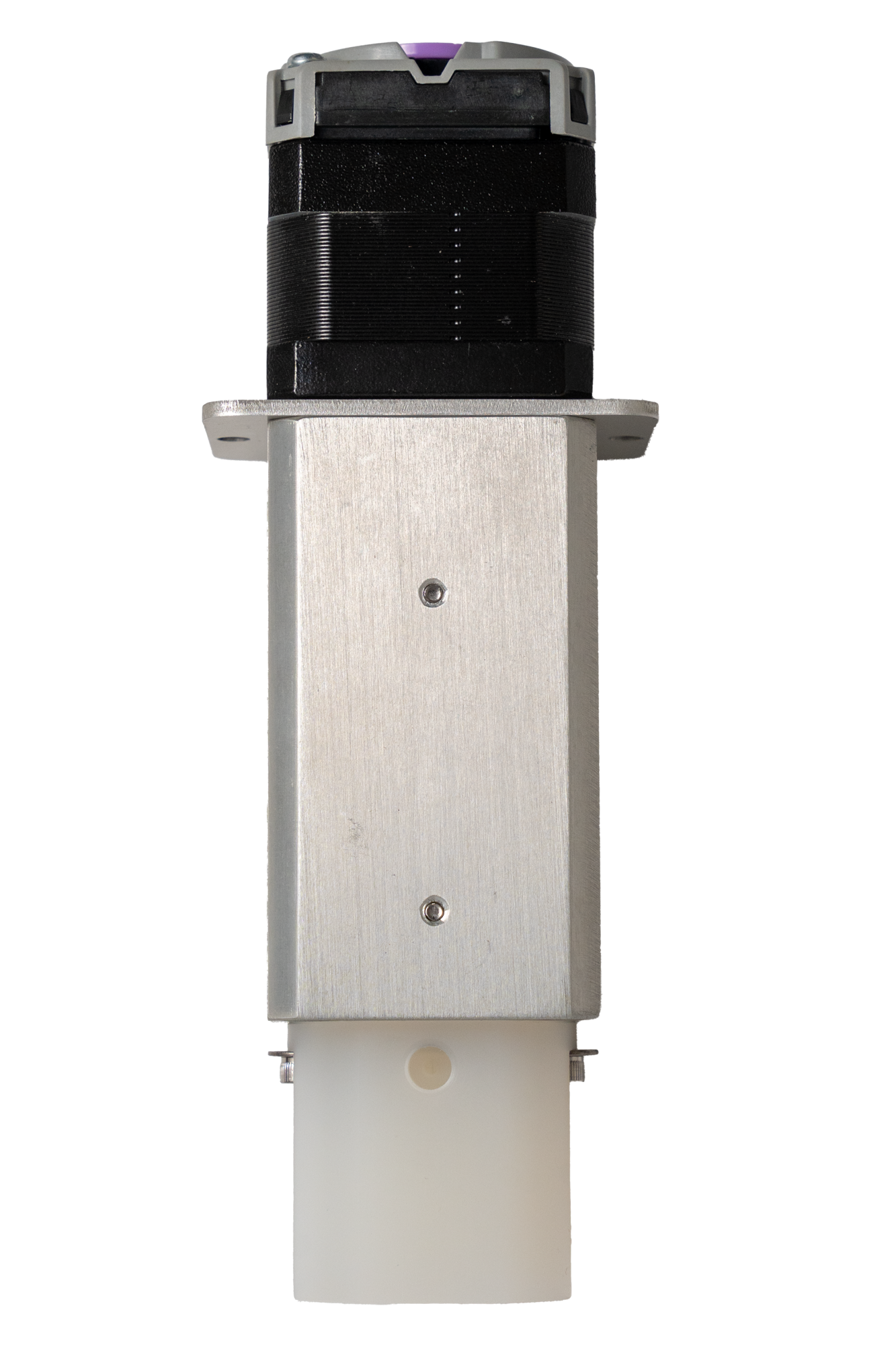

Image Credit: Fluid Metering, Inc.

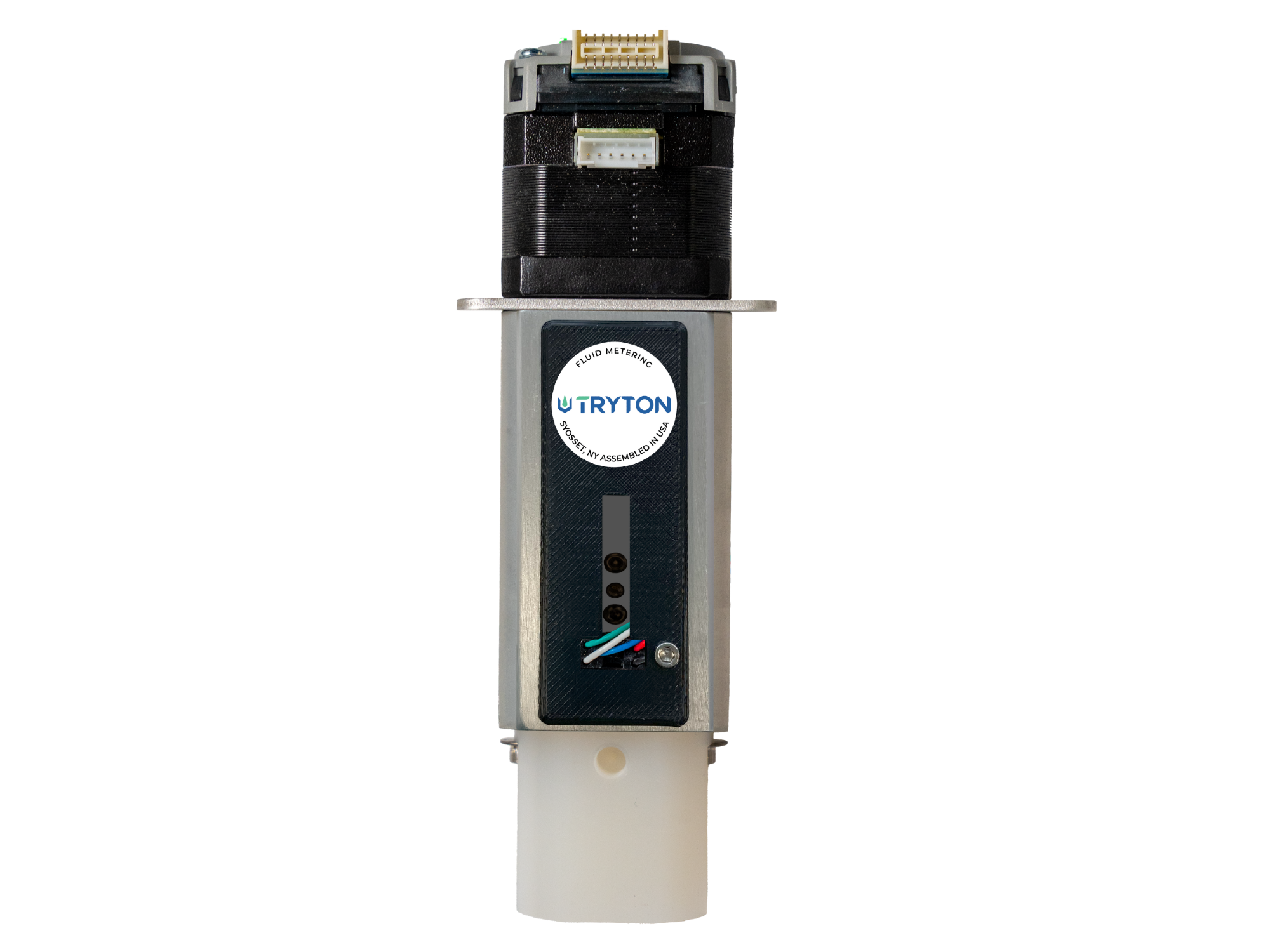

Image Credit: Fluid Metering, Inc.
Download the Brochure for More Information
Product Details
Source: Fluid Metering, Inc.
Dispense Volume
Range |
Flow Rate Range |
Dispense
Resolution |
Motor Speed
Range |
| 3- 150 µL |
Minimum 0.105 µL/sec @ 1 rpm;
Maximum 62.8 µL/sec @ 600 rpm |
0.031 µL/Full Step |
Up to 2000 step/sec |
Specifications
- Motor frame
- Electrical (Rated Current)
- Operating Temperature Range
- –20 °C to 50 °C (–4 °F to 122 °F)
- Operating Pressure Range
